API implementation guide

Clément Boutignon
Updated

This guide aims at giving context to developers interested in integrating the AutoRetouch API into their applications.

This guide does not replace the API documentation; the latter remains the source of truth and contains the necessary details to integrate, but this guide provides a more opinionated view that can help you get started.

This guide should only be used to understand how the API works. API users are responsible for their final implementation and should adopt industry best practices (e.g., retry mechanisms, error handling, security) before performing API calls.

Requirements

You will need the following:

  • An AutoRetouch user account. Need an account or want to try AutoRetouch? Contact Sales.
  • This user must have access to the organization you’d like to use via the API.
  • For the purpose of testing, we recommend to request the creation of a dedicated workflow with a single ‘export’ workflow component; that way you’ll minimize wait time during your implementation, and costs. To do that, reach out to the Support team.

ℹ️ Every execution is billable by default, so if you are a test customer, make sure your AutoRetouch contact has clarified whether you will or not be billed for the executions during the test. If you face PAYMENT_REQUIRED workflow execution statuses during the testing phase, please reach out to your AutoRetouch contact to lift the limitation.

Target implementation

This guide will focus on how to integrate the API for the purpose of sending images to a specific workflow and getting them back. There are other actions we can perform via the API, but that’s the main use case!

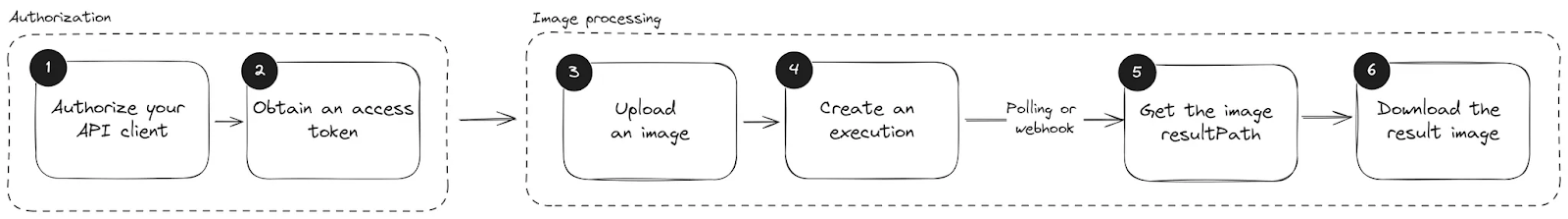

In a nutshell, this is what we’ll do:

Step-by-step

1. Authorize your API client

For this, you will need to go to the API credentials page (also accessible via your profile menu)

  1. Login with your AutoRetouch credentials at https://webapp.autoretouch.com
  2. You should land to the home page
  3. Click on your profile menu, top-right corner

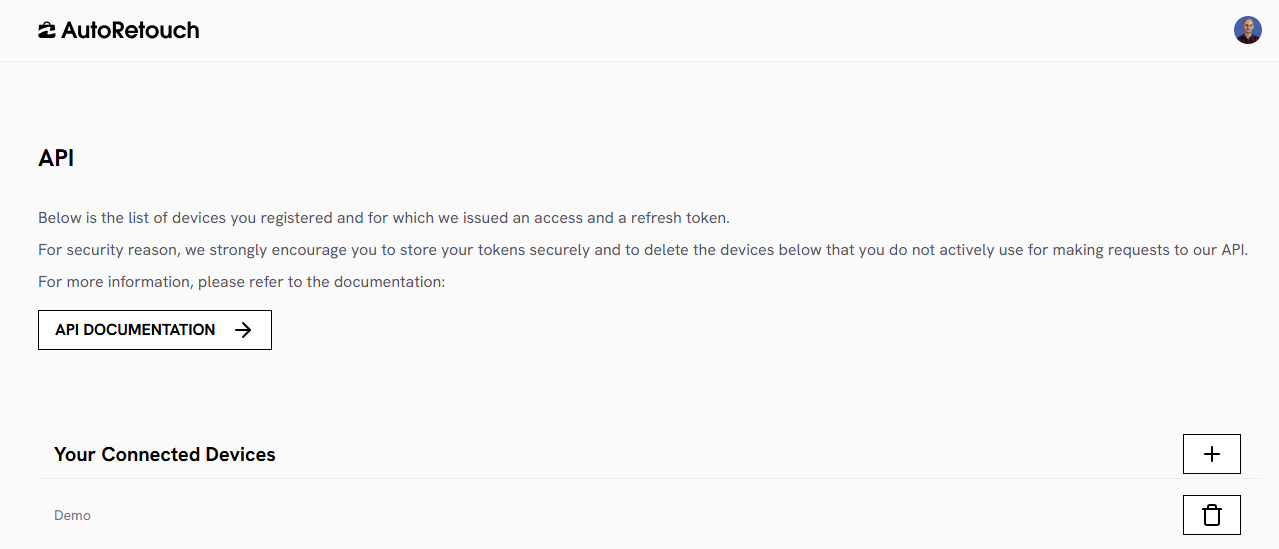

  4. Select “API” to open the screen shown above

Once you’re on your profile:

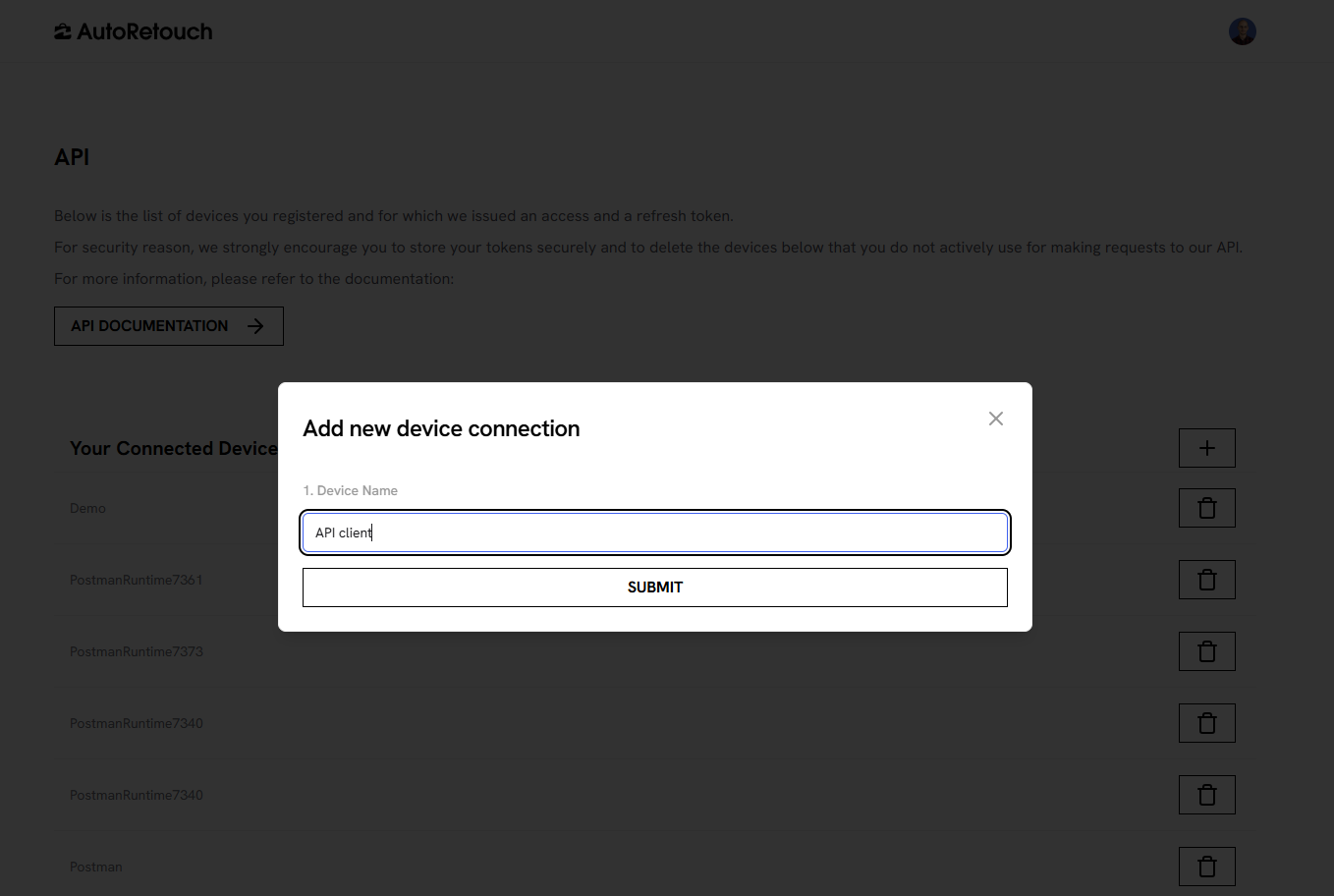

  1. Click on the “plus” button to add a device
  2. Enter a device name (e.g., Test Client)
  3. Submit, then click “Confirm Device”. This will trigger a device authorization flow (opened in a new window)

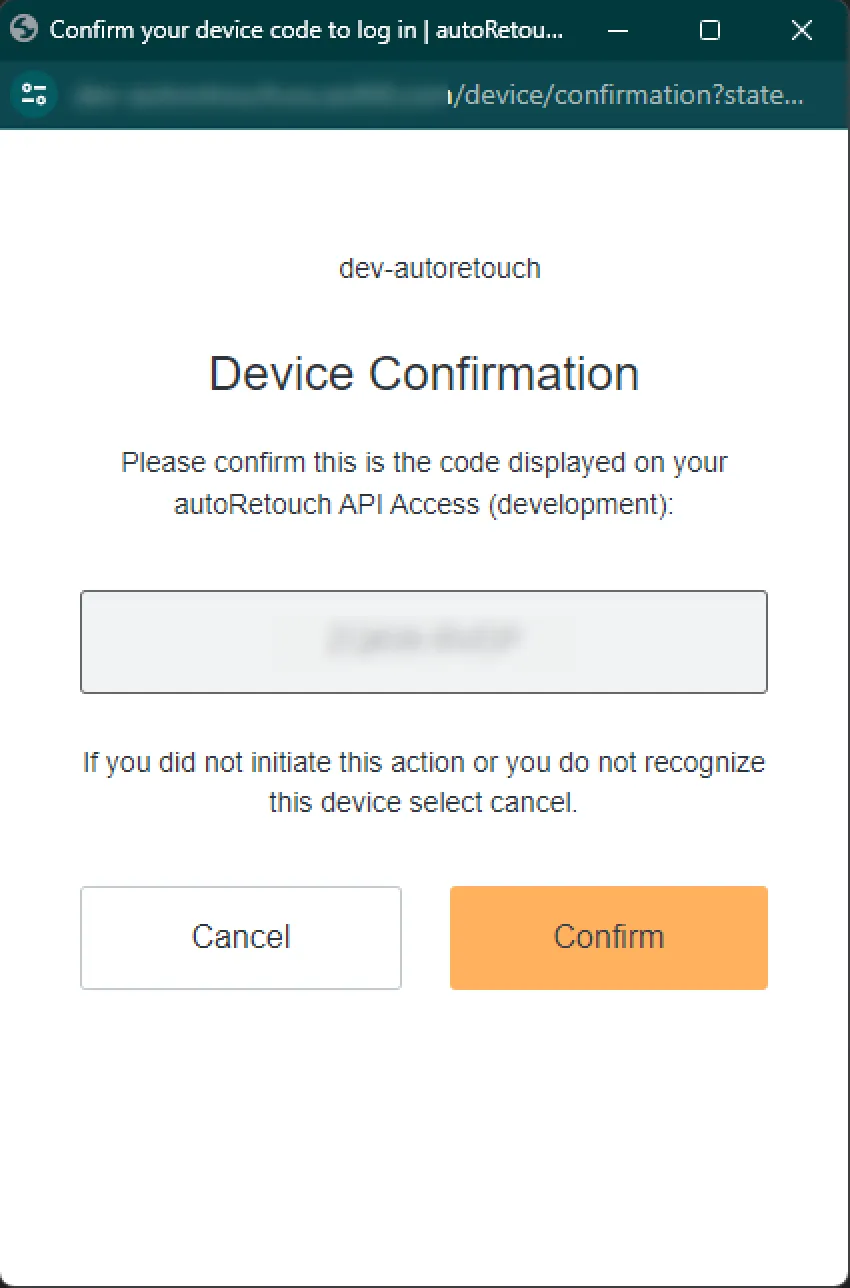

Once the window loads:

  1. If the verification code on your profile matches the one in the new window, click “Confirm”
  2. You may have to log in at this step; use your AutoRetouch credentials for that.

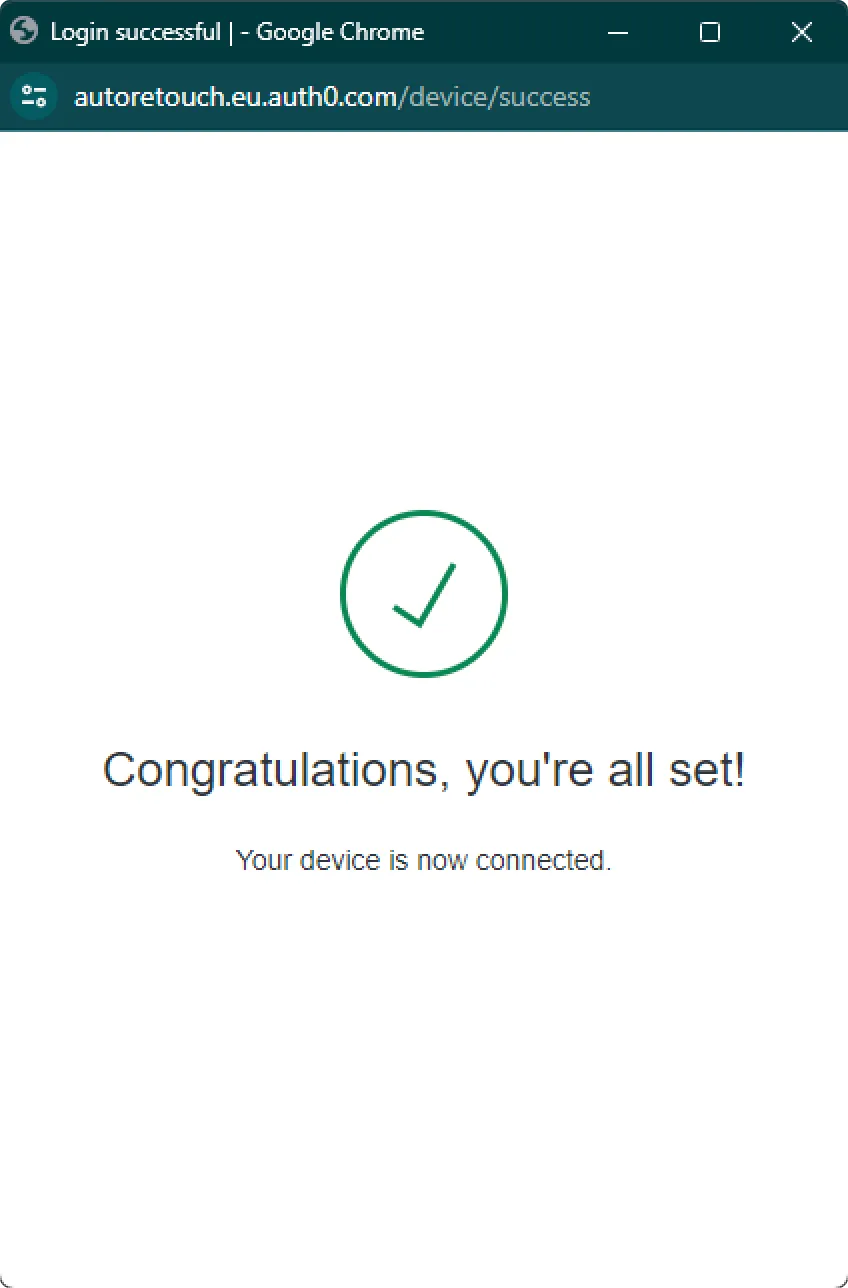

If all goes well, you will see a “Congratulations, you’re all set” message:

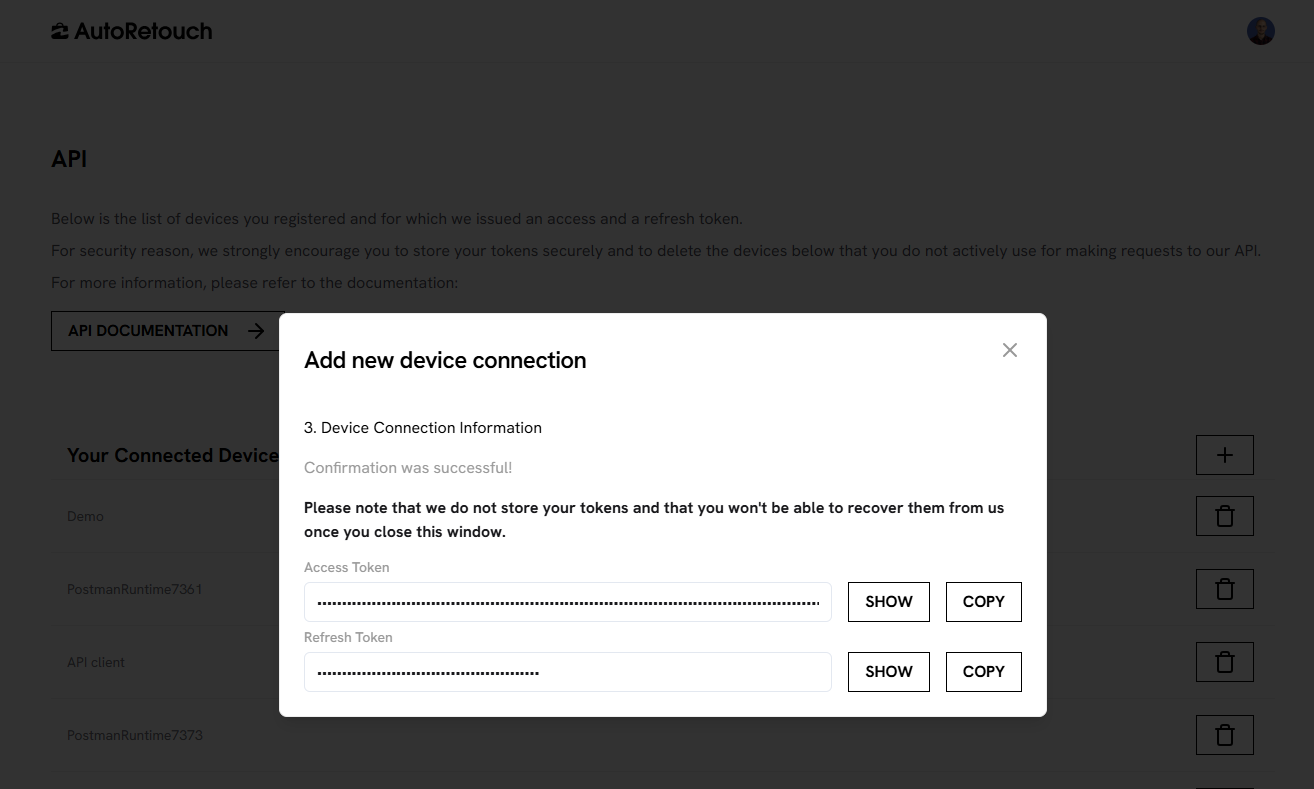

On your profile, you should see the following:

  1. You will be able to see and copy the refresh token. We are not interested in the access token here, as we’ll rely on the refresh token to obtain access tokens when needed via the API.
  2. Once the refresh token is saved securely on your end, you can close the “Add new device connection” window. This is shown only once, so make sure to store this information securely before closing the window.
ℹ️ If you need to revoke that refresh token, simply click on the trash icon for the corresponding client in the “Your connected devices” section and confirm when prompted to validate your action.

2. Get an access token

Now that you have obtained a refresh_token, all you have is to obtain an access_token using the refresh access token endpoint (API doc).

The key information is to understand that the client_id is a static and global value. You should use the one provided in the documentation.

Once you’re done, validate that your access token works by calling the /v1/organization endpoint. You should see details about your organization, including its name and ID. You can take note of the organization_id you’d like to use for this implementation if you don’t have it already, as you will needed it for your implementation.

3. Upload an image

  1. Perform an image upload using the dedicated upload endpoint (API doc)
  2. You will get an image hash back in the response, which you have to keep/store for the next step

Note that uploading in parallel is a true time saver for high-volume processing.

ℹ️ The system deduplicates uploads. If you upload an image 3 times, and we still have it in storage (not removed due to retention policy), then we detect it’s the same image and will return the same hash. Customers are not charged for uploads, only for executions.

4. Create a workflow execution

A workflow execution means telling the system to process an image through a workflow. There are quite a few important points to know to make the most of the workflow execution creation endpoint (API doc).

Webhooks

You can pass a webhook URL when creating a workflow execution. This webhook URL will be invoked by the API when the execution has specific statuses like IN_QA or COMPLETED. The alternative is to poll the workflow execution details endpoint, but this is less efficient.

The response in both cases is the one you get when performing a GET on workflow execution details (API doc), but when it's delivered via Webhook, the response body is wrapped in a content object as shown below:

{
  "event": "WORKFLOW_EXECUTION_COMPLETED",
  "content": {
    "id": "4f49c2b1-b428-44d2-8035-6949982122ce",
    "workflow": "6afcab7d-da51-4dd1-847a-3c1ccd39cd68",
    "workflowVersion": "74c0097a-0732-4539-92f1-c0b3d34e6769",
    "workflowName": "",
    "organizationId": "9451ecbf-79db-4013-98b1-2c300748b170",
    "status": "COMPLETED",
    "userId": "google-oauth2|118231812295695726244",
    "createdAt": "2025-05-28T20:33:16.193Z",
    "startedAt": "2025-05-28T20:33:16.738Z",
    "finishedAt": "2025-05-28T20:33:33.835Z",
    "inputFileName": "test.jpg",
    "inputContentHash": "df3b47d7c2f2d5bf0333ee086e31ff041d4aa85830290e6605e92d79341f9a54",
    "intermediateResult": null,
    "resultContentHash": "09ad3a37cdd83475c88f99b65ee64167933c93573d7df0326cca72ab4d155a70",
    "resultContentType": "image/png",
    "resultFileName": "test.png",
    "resultPreviewContentHash": "09ad3a37cdd83475c88f99b65ee64167933c93573d7df0326cca72ab4d155a70",
    "resultPath": "/image/09ad3a37cdd83475c88f99b65ee64167933c93573d7df0326cca72ab4d155a70/test.png",
    "labels": {
      "autoretouch_batch_name": "test",
      "autoretouch_batch_id": "29532657-c82b-427a-8b6a-ded598d696a8",
      "autoretouch_batch_createdAt": "2024-02-08T09:09:01.960Z"
    },
    "chargedCredits": 57,
    "feedback": null,
    "fastlane": null,
    "webhooks": [
      "https://webhook.site/xxx-xxx-xxx"
    ]
  }
}

Note that event names in webhooks events doesn't match with statuses, this is the mapping. To make sure you only process completed executions, test for event == WORKFLOW_EXECUTION_COMPLETED.

Batching

You can pass Batch information to the API, which is recommended if you plan to rely on quality checks down the line. If you don’t, you can skip this section.

Batching from the API standpoint corresponds to setting shared attributes between executions. There is no batch upload or batch processing occurring here, and there are no performance gains in providing batching information at the API level.

In the API, we use the term batch. In the AutoRetouch Web App, the same concept is shown to users as an order. When someone processes an order in the UI, a batch of executions is created under the hood. And if a developer uses the API to create a batch of executions, these executions will show up within an order in the UI. Make sure to align on this with teams using the Web App, so that the way you group executions makes sense from a business perspective.

Example

If you create 3 executions that have all the autoretouch_batch_id set to 29532657-c82b-427a-8b6a-ded598d696a9, then these executions will be interpreted by downstream systems, like the AutoRetouch UI, as being part of the same batch.

How to group images

Usually, images are grouped logically. If you are an eCommerce site, you may want to group them by SKU. You can also group them arbitrarily, for instance, by group of 50.

Benefits

  • The related images will show as belonging to the same batch in the AutoRetouch UI.
  • The related images will be handled together when quality checks are performed.
  • The batch information will be available to you in the execution details payload, allowing you to group images together should that be needed.

Example of request body

Here is a workflow execution creation body that illustrates how to use the various features discussed in this section:

{
    "image": {
        "contentType": "image/jpeg",
        "contentHash": "{{image_hash}}", // from your upload
        "name": "myfilename.jpg"
    },
    "labels": {
        "autoretouch_batch_id": "29532657-c82b-427a-8b6a-ded598d696a9", // uuid
        "autoretouch_batch_name": "Boots 224", // string
        /**
        best time you can get to represent a batch creation time,
        the value is mandatory but if not perfect it will work.
        **/
        "autoretouch_batch_createdAt": "2024-02-08T09:09:01.960Z"
    },
    "webhooks":[
        "<https://webhook.site/xxxx>"
    ]
}

5. Get the image resultPath

If you have successfully created your execution, you’ll get an execution id back.

  • You can then use it to poll the workflow execution details endpoint (API doc) until the status is set to COMPLETED. When that’s the case, you will also have access to the resultPath of the image, which you will need to go to the next step.
  • Or, if you passed a webhook URL, just catch the resultPath when your infrastructure receives the callback from AutoRetouch. The payload will contain the same information (workflow id, resultPath, status, etc.), just make sure to parse the event payload as explained in the section dedicated to webhooks.

6. Download the image

Regardless of your method to obtain the resultPath, you can now download the workflow execution result image using the dedicated endpoint (API doc).

You’re done 🎉
